How to Deal With Laravel Task Scheduling on Heroku

Posted on 5 mins read

Three months ago, i was assigned to one of Qiscus product called Qismo. Qismo is an accelerator package as a solution for customers service. It is an integrated service which connects customers to merchants via currently available messaging services in the market such as FB messenger, Line, Telegram and Qiscus widget. This allows a merchant to gather all incoming messages from customers in one place and get back to them in no time.

As a SaaS (Software as a Service) product, Billing & Payment is an important feature. In the other hand, currently Qismo already have so many clients. We need to filter who is paid clients and who is free clients. And we want to make clients can make a payment via Qismo dashboard based on their plan subscription. So, my team plan to ship Billing & Payment feature in the end of October 2018. Then we start to gather the requirements with Qiscus Business and Operations Team. Here are the list of functionalities that should we build :

  • Qismo will have list of plans (Starter, Business, Enterprise, Custom)
  • Qismo will have monthly and annually subscription type
  • Qismo user will have 14 days free trial
  • After 14 trial days, free account will be disabled automatically
  • Qismo will create an invoice to paid account automatically based on their plan (recurring invoices)
  • Qismo will send email notifications automatically on some events such as disabled free account, new invoice, invoice due date and qismo account monthly usage
  • Qismo will support bank transfer payment method

Based on the list above, there are some functionalities that should be run automatically. For example disable free account, send email notifications and create recurring invoices. To develop that features, we choose to use Laravel Task Scheduling.

This laravel feature allow you to fluently and expressively define your command schedule within Laravel itself. When using the scheduler, only a single Cron entry is needed on your server. In the other words, you don’t need to generated a Cron entry for each task you needed to schedule. Yes, its so simple and funny.

Let’s focus on Qismo use cases again. Our scenario is Qismo will have several background jobs to handle Billing & Payment feature. Here is the background job sample.

<?php

    namespace App\Jobs\Payment;

    use Illuminate\Bus\Queueable;
    use Illuminate\Queue\SerializesModels;
    use Illuminate\Queue\InteractsWithQueue;
    use Illuminate\Contracts\Queue\ShouldQueue;
    use Illuminate\Foundation\Bus\Dispatchable;
    ........

    class DisableFreeAcountJob implements ShouldQueue
    {
        public function __construct()
        {

        }

        public function handle()
        {
            // Code to disable qismo free account

        }

    }

Basically, another background jobs are same with DisabledFreeAcountJob above. The main different only on the business logic on each background jobs. All background jobs are placed in folder App\Models\Jobs\Payment.

    ├── app
    │   ├── Console
    │   ├── Exceptions
    │   ├── Http
    │   ├── Jobs
            ├── Payment
            │   │   ├── DisabledFreeAcountJob.php
            │   │   ├── CreateRecurringInvoicesJob.php
            │   │   ├── SendEmailNotificationsJob.php
    │   ├── Mail
    │   ├── Models
    │   ├── Modules
    │   ├── Providers
    │   ├── Scopes
    ├── bootstrap
    ├── config
    ├── routes
    ├── ..............

Then we want to run all payment background jobs daily. It’s very simple. We just need to add all scheduled tasks in the schedule method of the App\Console\Kernel.php. Here is the details.

<?php

namespace App\Console;

use DB;
use Illuminate\Console\Scheduling\Schedule;
use Illuminate\Foundation\Console\Kernel as ConsoleKernel;

class Kernel extends ConsoleKernel
{
    .....................
protected function schedule(Schedule $schedule)
    {
        $schedule->job(new \App\Jobs\Payment\DisableFreeAcountJob())->dailyAt('01:00');
        $schedule->job(new \App\Jobs\Payment\CreateRecurringInvoicesJob())->dailyAt('01:00');
        $schedule->job(new \App\Jobs\Payment\SendEmailNotificationsJob())->dailyAt('01:00');
   }
}

Now we can run all background jobs above only using one command. The command is php artisan schedule:run. Next step is we need to add Heroku plugin called Heroku Scheduler. This plugin will execute php artisan schedule:run command periodically and allows you to configure jobs to run every 10 minutes, every hour, or every day, at a specified time.

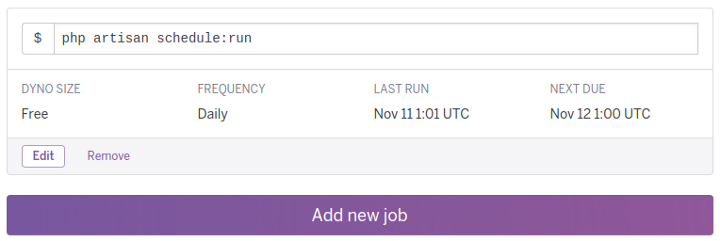

For Qismo use case, we choose to exucute php artisan schedule:run daily every 01:00 UTC. From the image below, we can monitor what is the next due and what is the last run.

Heroku Scheduler

The problem

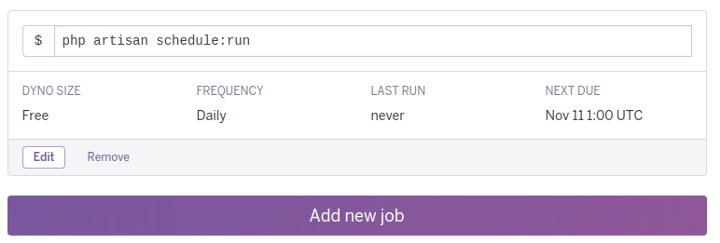

But the reality, next due is not accurate. Sometime next due execution is late. This condition will affected to all payment background jobs that never be executed. To be honest, i was struggling with this issue around 2 days.

Heroku Scheduler

So what is the solution?

In order to handle the problem above, we need to do extra codes. There are 3 steps : create crons table, create the model and run the task based on a truth tests.

1 — Create migration to create crons table

Crons table have 3 columns. First, command column is used to store background job name that will be executed. Next_run & last_run column is same with next_due and last_run on Heroku Scheduler configuration. Command column is a primary key, so the value must be unique. It’s to prevent command duplication.

<?php
use Illuminate\Support\Facades\Schema;
use Illuminate\Database\Schema\Blueprint;
use Illuminate\Database\Migrations\Migration;
use Carbon\Carbon;
class CreateCronsTable extends Migration
{

    public function up()
    {
        Schema::create('crons', function (Blueprint $table) {
            $table->string('command');
            $table->datetime('next_run');
            $table->datetime('last_run');
            $table->timestamps();
            $table->primary('command');
        });
    }
    public function down()
    {
        Schema::dropIfExists('crons');
    }
}

After run the migration to create crons table above, don’t forget to insert list of payment background jobs manually. So, crons table contains 3 records.

List of Jobs

2 — Create the model

<?php

    namespace App\Models;

    use Illuminate\Database\Eloquent\Model;
    use Carbon\Carbon;

    class Cron extends Model
    {
        protected $primaryKey = 'command';

        protected $fillable = ['command', 'next_run', 'last_run'];

        public static function shouldRun($command, $days) {
            $cron = Cron::find($command);
            $now  = Carbon::now();

           if ( empty($cron) ||
                date('Y-m-d H:i', strtotime($cron->next_run)) > date('Y-m-d H:i', strtotime($now))
            ) {
                return false;
            }

           $cron->next_run = Carbon::parse($cron->next_run)->addDays($days);
            $cron->last_run = Carbon::now();
            $cron->save();

            return true;
        }
    }

Cron model only contain one static function to check a command should be run or not. A command should be run if command is found in database and the next run is less than the current time.

3 — Run scheduler based on the truth tests

$schedule->job(new JOBNAME())->everyMinute()->when(function() {
          return Cron::shouldRun('JOBNAME()', 1);
    });

Update laravel task scheduling configuration in App\Console\Kernel.php using the truth tests above. Please replace JOBNAME() with three payment background jobs name.
